Máquina de soldar a laser a bateria

6000W High Precision Battery Pack Laser Welding Machine with 3 Years Warranty for Lithium Ion Battery Welding

All Category

máquina de soldadura do ponto da bateria

Linha de montagem do pacote de baterias

Máquina de soldar a laser a bateria

Máquina de classificação da bateria

Máquina de autocolantes de bateria

Acessórios da bateria

Contacte-nos

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

6000W High Precision Battery Pack Laser Welding Machine with 3 Years Warranty for Lithium Ion Battery Welding

Brand Name:	CHEEO
MOQ:	1
preço:	$10,000-11,000

Detail Information

Product Description

Detail Information

Lugar de origem:

Guangdong, China

potência de saída:

6000W

Comprimento de onda do laser:

1080

Velocidade de soldagem:

10-100 mm/s

Precisão da posição:

± 0,05 mm

Reposicionamento da precisão:

± 0,01 mm

Velocidade rápida de posicionamento:

1000 mm/s (eixo XY), 500 mm/s (eixo z)

Qualidade do feixe:

<1,4㎡

Estabilidade de energia:

≦ 3%

A distância focal de foco a laser:

F=180 mm

Tamanho fazendo à máquina máximo:

800*600mm/1000*800

Temperatura ambiente:

5-45 ℃

Consumo de potência total:

3,5kW (2000W), 5,5kW (3000W), 8kW (4000W), 10kW (6000W)

Dimensão geral:

L1343XW1454XH22235MM

Peso da máquina:

500 kg

Núcleo de fibra:

20UM/50pm/100pm (opcional)

Destacar:

6000W Battery Pack Laser Welding Machine

High Precision Lithium Ion Battery Laser Welder

3 Years Warranty Fiber Laser Welding Equipment

Product Description

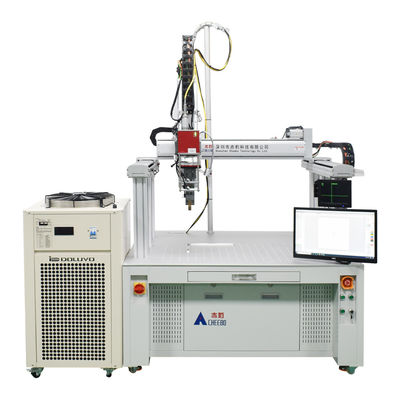

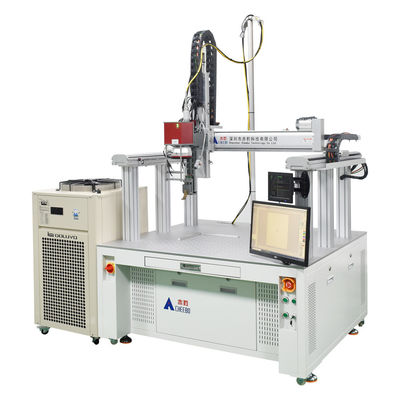

Battery Pack Laser Welding Machine (2000W-6000W)

This high-performance fiber laser welding machine integrates advanced components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers exceptional performance for lithium battery welding applications.

Key Features

Advanced fiber laser source optimized for high reflective materials (aluminum)
Patented gantry machine tool design for superior rigidity and stability
High-precision guide rail transmission with servo motors for fast, accurate welding
Fine laser spots with deep melting depth and minimal taper
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption and minimal maintenance
Optional CCD visual positioning and automatic focal length measurement systems
Automatic top pressure welding device reduces fixture requirements

Technical Specifications

Laser Power	1500W/2000W/3000W/4000W/6000W	Welding Speed	10-100mm/s
Position Accuracy	±0.05mm	Laser Wavelength	1080nm
Regulating Frequency	30-5KHZ	Power Adjustment Range	10-100%
Repositioning Accuracy	±0.01mm	Rapid Positioning Speed	1000mm/sec (XY), 500mm/sec (Z)
Cooling System	External water cooling	Operating Mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power Stability	≤3%
Maximum Machining Size	800×600mm/1000×800mm	Machine Weight	Approx. 500KG

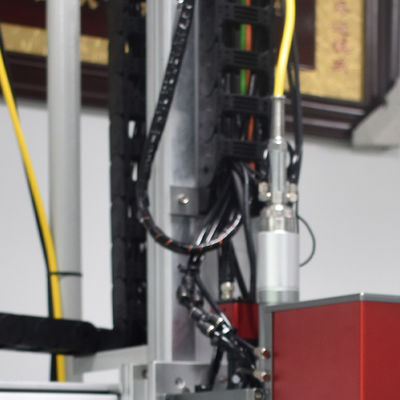

System Components

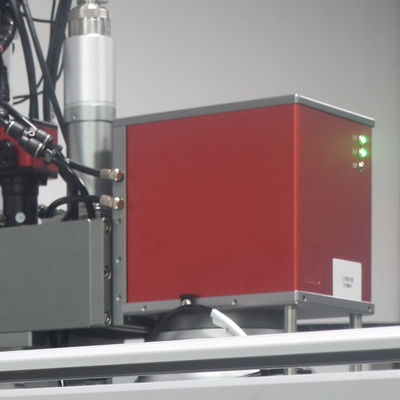

Welding Point Monitoring, Autofocus

High Precision Welding Joint

Rail Module

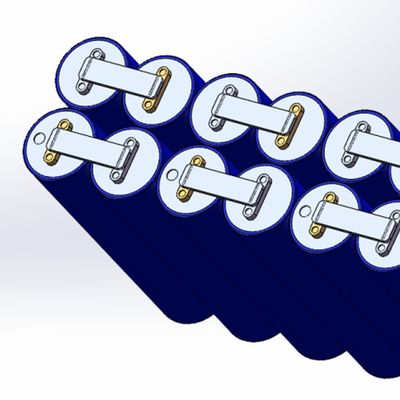

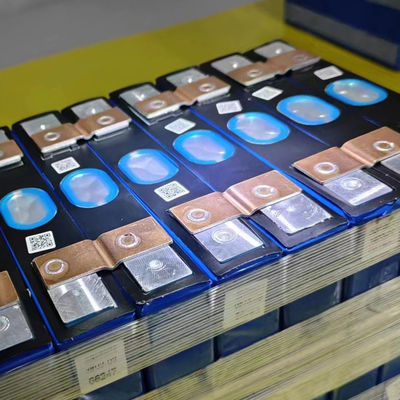

Welding Product Examples

Frequently Asked Questions

Q: How do I select the right model for my needs?

A: Please provide your battery model/type and welding material/thickness specifications. Our experienced team will recommend the optimal configuration.

Q: What support is provided for machine installation?

A: Machines are pre-installed before shipping. We provide detailed training videos and manuals for final setup - 95% of customers successfully self-install.

Q: What is your minimum order quantity?

A: No MOQ requirements - we support orders of any size with equal dedication.

Q: How is quality controlled?

A: Each unit undergoes 20+ rigorous tests, including final welding performance verification by our QC team.

Q: What if I encounter technical issues?

A: Contact us immediately - our support team responds within 24 hours. Never attempt unauthorized repairs.
