Automatic 6000W High Precision Battery Laser Welding Machine with 3 Years Warranty for Prismatic Battery Packs

Brand Name:	CHEEBO
MOQ:	1
preço:	$10,000-11,000

Detail Information

Product Description

Detail Information

Lugar de origem:

Guangdong, China

potência de saída:

6000W

Peso:

500 kg

Power a laser:

1500W/2000W/3000W/4000W/6000W

Velocidade de soldagem:

10-100 mm/s

Precisão da posição:

± 0,05 mm

Comprimento de onda do laser:

1080

Frequência de regulação:

30-5kHz

Faixa de potência ajustável:

10 a 100%

Reposicionamento da precisão:

± 0,01 mm

Precisão de posicionamento rápido:

1000mm/s (xyaxis) 、 500mm/s (Zaxis)

Qualidade do feixe:

<1,4㎡

Estabilidade de energia:

≦ 3%

A distância focal de foco a laser:

F=180 mm

Tamanho fazendo à máquina máximo:

800*600mm/1000*800

Consumo de potência total:

3,5kW (2000W) /5.5kW (3000W)/8 kW (4000W)/10kW (6000W)

Dimensão geral:

L1343XW1454XH22235MM

Destacar:

6000W Battery Laser Welding Machine

High Precision Laser Welder

3 Years Warranty Fiber Laser Welding Machine

Product Description

Automatic Prismatic Battery Pack Laser Welder 3000w Battery Laser Welding Machine

This high-performance fiber laser welding machine integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers exceptional performance in lithium battery welding applications.

Key Features:

Advanced fiber laser source specifically designed for high reflective materials (aluminum)
Proprietary gantry machine tool design for superior rigidity and stability
High beam quality with excellent stability, reliability, and low operating costs
High lifespan gantry dual-drive motion platform with large surface travel welding range
Precision guide rail transmission with high-response servo motors for fast, accurate operation
Fine welding spots with deep melting depth, small taper, and smooth surface finish
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption and minimal maintenance
Optional CCD visual positioning system and automatic focal length measurement

Technical Specifications

Laser Power	1500W/2000W/3000W/4000W/6000W	Welding Speed	10-100mm/s
Position Accuracy	±0.05mm	Laser Wavelength	1080
Regulating Frequency	30-5KHZ	Adjustable Power Range	10-100%
Repositioning Accuracy	±0.01mm	Rapid Positioning Accuracy	1000mm/sec (XY axis), 500mm/sec (Z axis)
Coolant System	External water cooling	Operating Mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power Stability	≦3%
Laser Output Mode	CW/PWM	Laser Power Adjustment Range	1-100
Laser Focusing Focal Length	F=180mm	CCD Positioning Accuracy	0.01mm (Optional)
Maximum Machining Size	800600mm/1000800	Ambient Temperature	5-45℃
Fiber Core	20um/50pm/100pm (Optional)	Overall Power Consumption	3.5KW (2000W)/5.5KW (3000W)/8KW (4000W)/10KW (6000W)
Overall Dimension	L1343xW1454xH22235mm	Machine Weight	About 500KG

Product Details

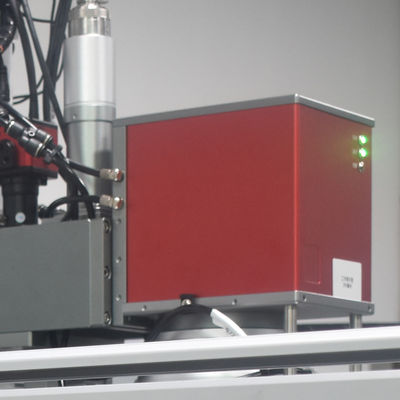

Welding Point Monitoring, Autofocus

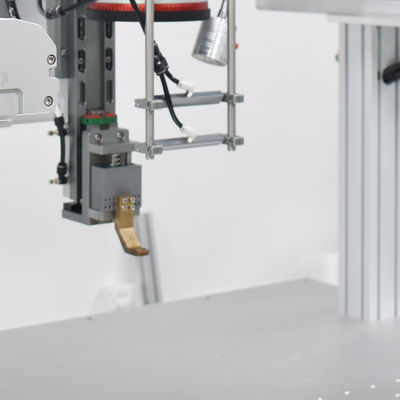

High Precision Welding Joint of Vibrating Mirror

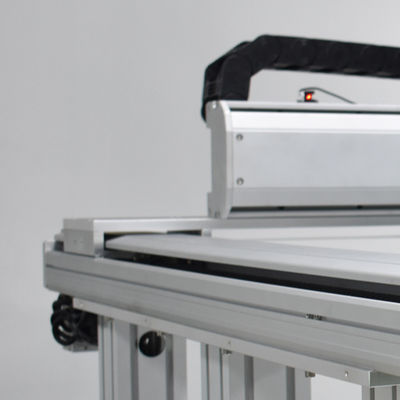

Rail Module

BWT Laser Welder - Welding Product Diagram

Frequently Asked Questions

Q: I don't know which model suits my needs?

A: Please provide: 1) Battery model and type, 2) Welding materials and thickness. Our experienced team will recommend the optimal solution.

Q: How is the machine installed and operated?

A: Our technicians pre-install the machine before shipping. We provide detailed training videos and manuals for minor components - 95% of customers can self-learn operation.

Q: What is your minimum order quantity?

A: No minimum order quantity - we fully support orders from 1 to 100+ units.

Q: How do you ensure quality control?

A: Quality is our priority. Each unit undergoes 20+ rigorous tests, with final QC verifying welding performance before shipment.

Q: What if I encounter machine issues?

A: Contact us immediately - do not attempt repairs yourself. We guarantee 24-hour response to resolve any problems.
