Máquina de soldar a laser a bateria

6000W Output Power Automatic Lithium Battery Laser Welding Machine with Gantry Motion Structure and 3 Years Warranty

All Category

máquina de soldadura do ponto da bateria

Linha de montagem do pacote de baterias

Máquina de soldar a laser a bateria

Máquina de classificação da bateria

Máquina de autocolantes de bateria

Acessórios da bateria

Contacte-nos

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

6000W Output Power Automatic Lithium Battery Laser Welding Machine with Gantry Motion Structure and 3 Years Warranty

Brand Name:	CHEEO
MOQ:	1
preço:	$10,000-11,000

Detail Information

Product Description

Detail Information

Lugar de origem:

Guangdong, China

potência de saída:

6000W

Power a laser:

1500W/2000W/3000W/4000W/6000W

Velocidade de soldagem:

10-100 mm/s

Precisão da posição:

± 0,05 mm

Comprimento de onda do laser:

1080

Frequência de regulação:

30-5kHz

Faixa de potência ajustável:

10 a 100%

Reposicionamento da precisão:

± 0,01 mm

Precisão de posicionamento rápido:

1000mm/s (xyaxis) 、 500mm/s (Zaxis)

Qualidade do feixe:

<1,4㎡

Estabilidade de energia:

≦ 3%

A distância focal de foco a laser:

F=180 mm

Tamanho fazendo à máquina máximo:

800*600mm/1000*800

Consumo de potência total:

3.5KW ((2000W) /5.5KW ((3000W) /8KW ((4000W) /10KW ((6000W)

Dimensão geral:

L1343XW1454XH22235MM

Destacar:

6000W Output Power Battery Laser Welding Machine

3 Years Warranty Lithium Battery Laser Welder

Gantry Motion Structure Automatic Laser Welding Machine

Product Description

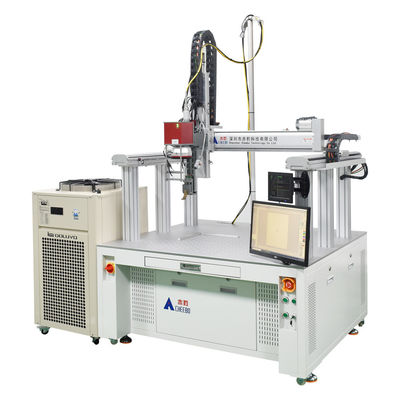

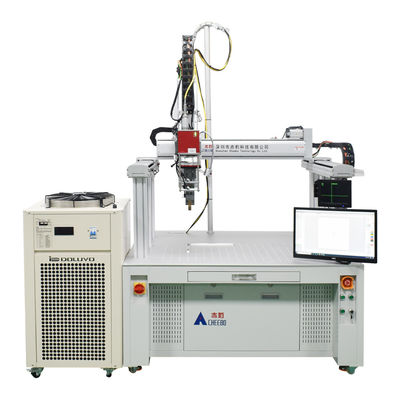

CHEEBO Lithium Battery Cell Laser Welding Machine

Automatic Lithium Battery Laser Welding Machine for Lithium Ion Batteries

This model integrates important components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers efficient, safe, and stable high-power fiber laser welding performance for lithium battery applications.

Key Features:

Continuous galvanometer laser welding with advanced fiber laser source, specially designed for high reflective materials (aluminum)
Gantry machine tool with excellent rigidity and stability for precise welding
High beam quality, stability, reliability, and low operating costs
High lifespan gantry dual drive motion platform with large welding range
Precision guide rail transmission with high-response servo motors
Fine welding spots with high melting depth and minimal taper
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption and minimal maintenance
Automatic top pressure welding device reduces fixture requirements
Optional CCD visual positioning and automatic focal length measurement systems

Technical Specifications:

Laser power	1500W/2000W/3000W/4000W/6000W	Welding speed	10-100mm/s
Position accuracy	±0.05mm	Laser Wavelength	1080
Regulating frequency	30-5KHZ	Adjustable power range	10-100%
Repositioning Accuracy	±0.01mm	Rapid positioning accuracy	1000mm/sec(XY axis), 500mm/sec(Z axis)
Coolant system	External water cooling	Operating mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power stability	≦3%
Laser light output mode	CW/PWM	Laser power adjustment range	1-100
Laser focusing focal length	F=180mm	CCD positioning accuracy	0.01mm(Optional)
Maximum machining size	800600mm/1000800	Ambient temperature	5-45℃
Fiber core	20um/50pm/100pm(Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Overall dimension	L1343xW1454xH22235mm	Machine weight	About 500KG

Product Details:

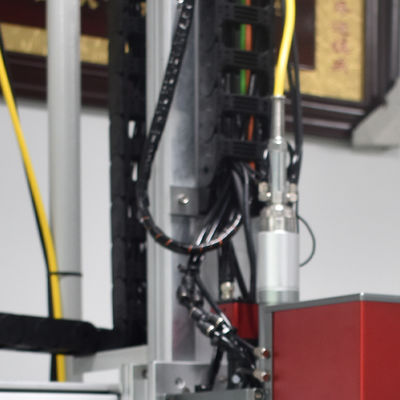

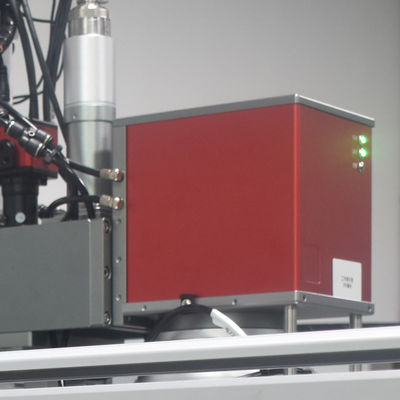

Welding Point Monitoring & Autofocus

High Precision Welding Joint

Rail Module

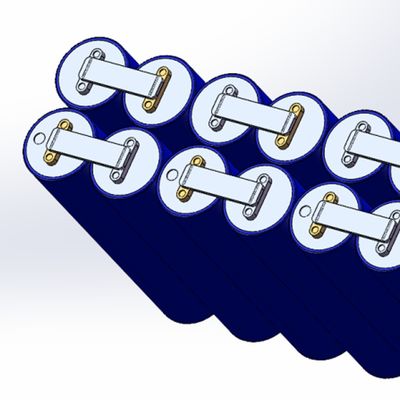

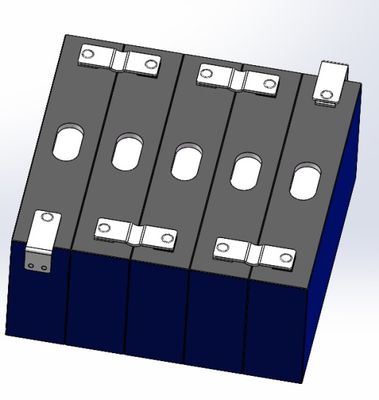

BWT Laser Welder - Welding Product Diagram

Frequently Asked Questions

Q: I don't know which model suits my needs?

A: Please provide your battery model/type and welding materials/thickness. Our experienced team will recommend the best solution.

Q: How to install and run the machine?

A: Our technicians pre-install machines before shipping. We include detailed training videos and manuals - 95% of customers can self-learn.

Q: What is your minimum order quantity?

A: No minimum order quantity - we support orders from 1 to 100+ units.

Q: How is your quality control?

A: Each unit undergoes 20+ tests. Our QC team verifies welding performance before shipment.

Q: What if there's a problem with the machine?

A: Contact us immediately - don't attempt repairs. We respond within 24 hours to resolve issues.
